KYOCERA Precision Tools TLC15161

/ 1

Part Number: TLC15161
UPC:
Availability: Item is usually in stock, but we'll be in touch if there's a problem

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Variations (129)

Product Overview

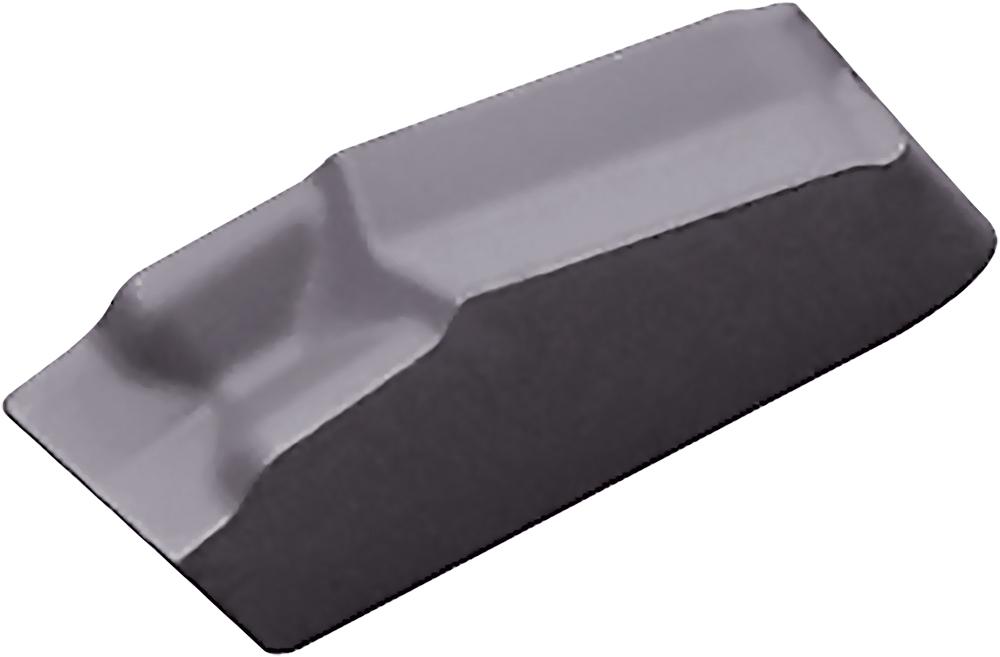

Kyocera TK R3P PR1535 Grade PVD Carbide, Indexable Cut-Off Insert

Specifications

Details

Category:

Cutting Tools

Subcategory:

Inserts

Subtype:

Indexable Cutting Tools

Category Level 4:

Cut-Off Inserts

Chipbreaker:

Coating Process:

PVD

Insert Holding Method:

Self-Clamp

Material:

Carbide

Number of Cutting Edges:

Primary Workpiece Material:

(S) Heat-Resistant Alloy

Rake:

Positive

Additional Manufacturer Part Number:

8844599

ANSI Part Number:

TKR3PPR1535

Application:

Cut-Off

California Prop 65 Item:

View

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Cutting Range:

Medium-Roughing

Discount Category Description:

Carbide / Cermet

ECCN:

EAR99

Feature 1:

Insert for Cut-Off

Feature 2:

Low Feed / 8 Degree Lead Angle

Feature 3:

1 Cutting Edge

Feature 4:

Stabilized turning operations and long tool life with MEGACOAT NANO coating technology

Feature 5:

Application: PVD for titanium alloy and precipitation hardened stainless steel

Full Radius:

Hand:

Right-Hand

Harmonized Code:

8209.00.0030

Insert Grade:

PR1535

Insert Size:

ISO Part Number:

TKR3-P

Material Group / Grade:

PR1535

Min Order Qty:

Origin:

JPN

Pack Height:

0.394

Pack Length:

4.134

Pack Width:

1.772

Product URL:

https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8844599

Series Description:

KTK Cut-Off

Series.1:

KTKC

Shipping Weight:

0.0635

Tool Style:

Unit (inch/mm):

UNSPSC:

23242107

UNSPSC Title:

Insert Carbide

Usage Classification:

Light Interruption

Video 3:

https://youtu.be/vUo4G4g-5Hc

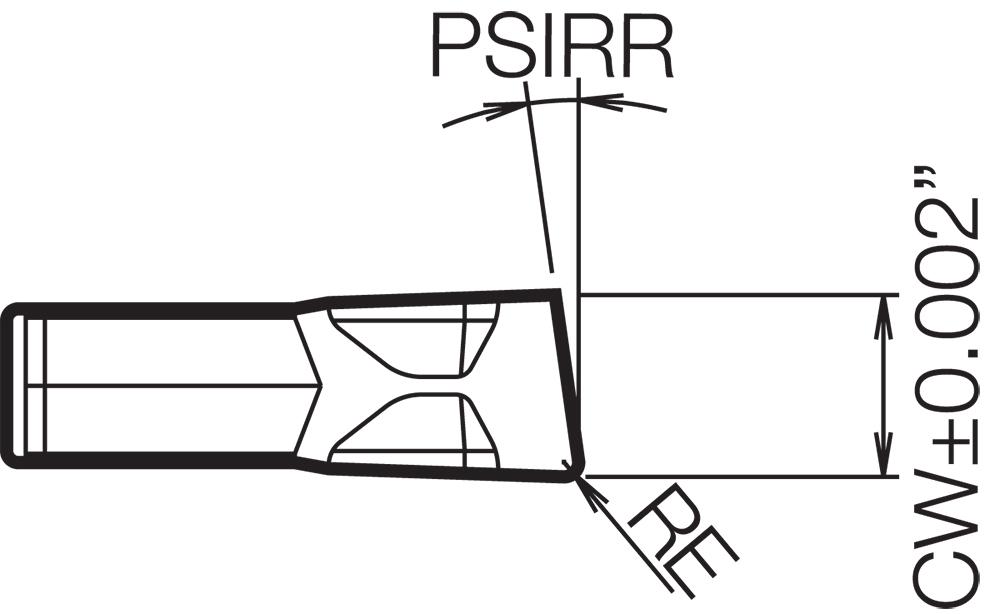

[CWN] Cutting Width Minimum (Decimal Inch):

0.1221

[CWN] Cutting Width Minimum (mm):

3.10

[CWX] Cutting Width Maximum (Decimal Inch):

0.1221

[CWX] Cutting Width Maximum (mm):

3.10

[CW] Cutting Width (Decimal Inch):

0.1221

[CW] Cutting Width (mm):

3.10

[RE] Corner Radius:

0.010"

[RE] Corner Radius (mm):

0.25
