KYOCERA Precision Tools TLC19816

KYOCERA Precision Tools TLC19816

$
24
16
/ 1
  • Part Number: TLC19816
  • UPC:
  • Availability: Item is usually in stock, but we'll be in touch if there's a problem
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (422)
Product Overview

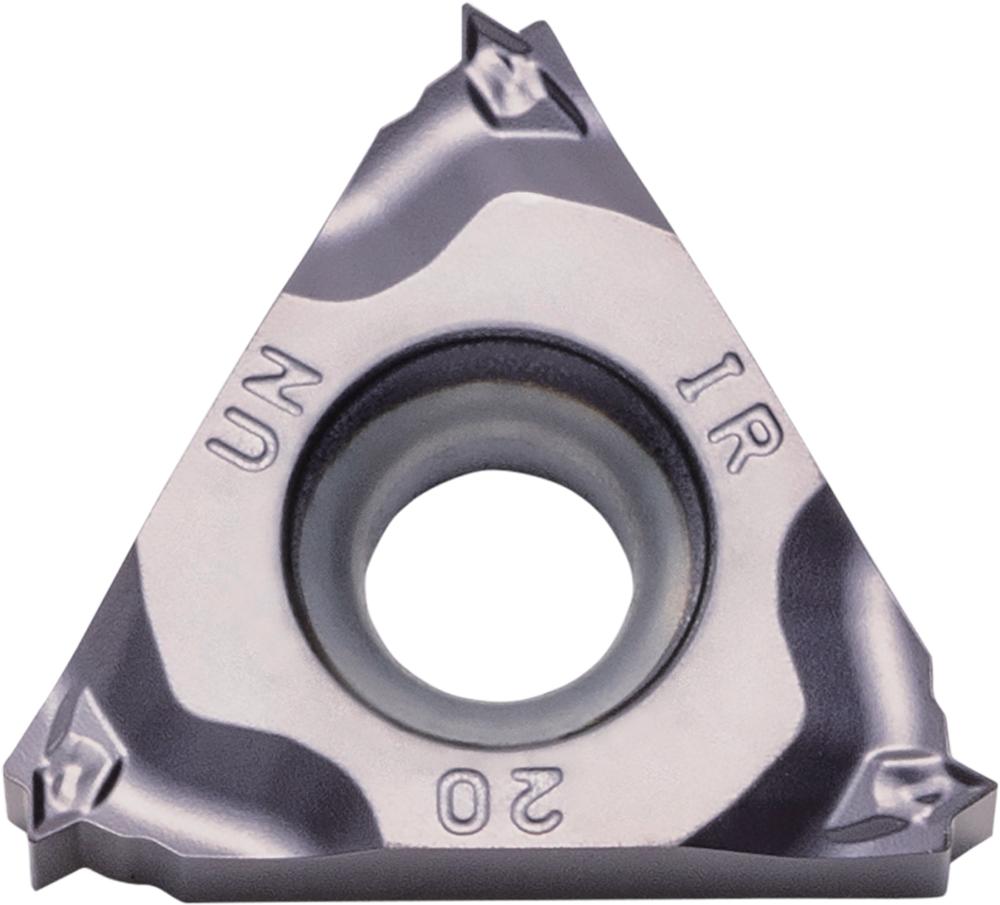

Kyocera 16 IR08UNTQ PR1535 Grade PVD Carbide, Indexable Threading Insert
Specifications
Details
Category:
Cutting Tools
Subcategory:
Inserts
Subtype:
Indexable Cutting Tools
Category Level 4:
Threading Inserts
Chipbreaker:
TQ
Coating Process:
PVD
Insert Holding Method:
Screw or Clamp
Material:
Carbide
Number of Cutting Edges:
3
Primary Workpiece Material:
(M) Stainless Steel
Thread Standard:
Unified (UN)
Thread Type:
Internal
Additional Manufacturer Part Number:
8861949
ANSI Part Number:
16IR08UNTQPR1535
Application:

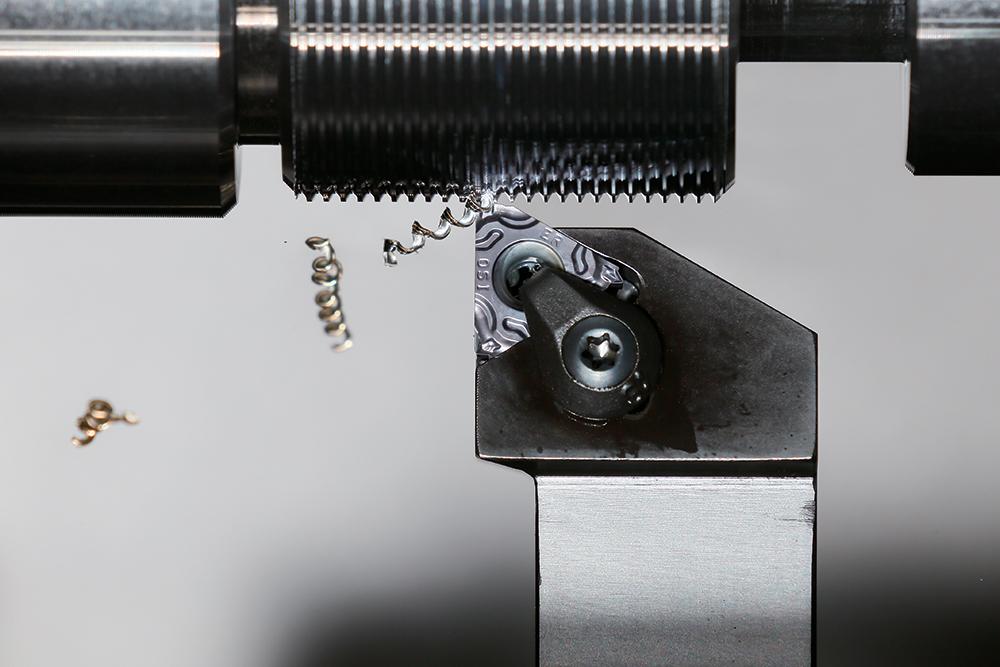

Internal Threading
California Prop 65 Item:
View
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Carbide / Cermet
ECCN:
EAR99
Feature 1:
Insert for Internal Threading with 3 Cutting Edges
Feature 2:
60 Degree Full Profile for Unified (UN) threads
Feature 3:
Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
Feature 4:
Application: PVD for titanium alloy and precipitation hardened stainless steel
Hand:
Right-Hand
Harmonized Code:
8209.00.0030
Insert Grade:
PR1535
Insert Size:
16
ISO Part Number:
16IR08UN-TQ
Material Group / Grade:
PR1535
Min Order Qty:
5
Origin:
JPN
Pack Height:
0.394
Pack Length:
4.134
Pack Width:
1.772
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8861949
Series Description:
Lay-down Threading
Series.1:
LDT
Shipping Weight:
0.1270
Thread Pitch (TPI):
UN, UNF: 8
Thread Profile:
60 Degree Full Profile
Tool Style:
16IR
Unit (inch/mm):
inch
UNSPSC:
23291804
UNSPSC Title:
Threading Insert
Usage Classification:
Continuous
Video 3:
https://youtu.be/vUo4G4g-5Hc

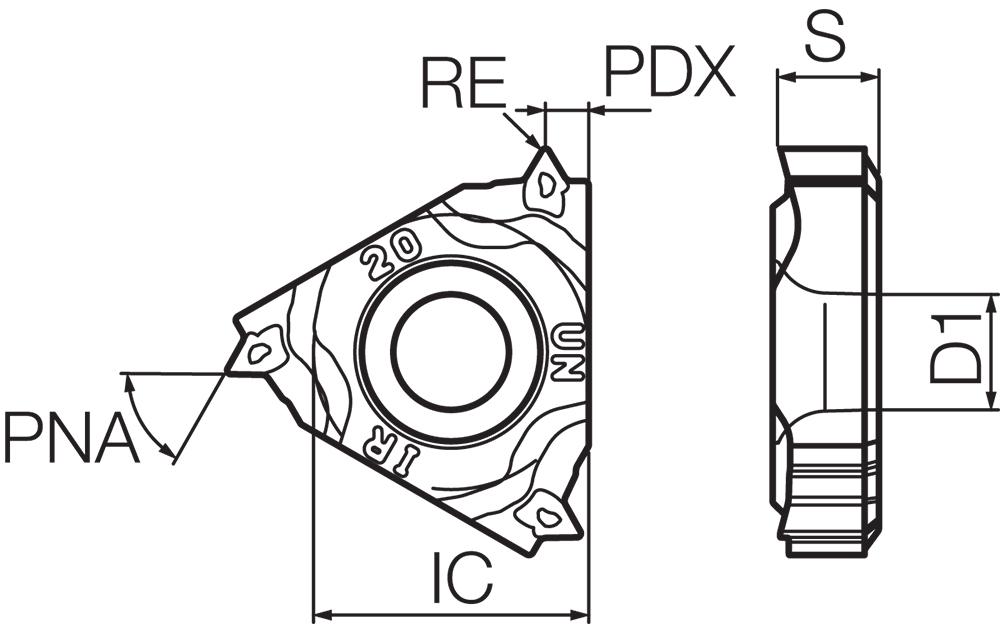

[IC] Inscribed Circle:
3/8"
[IC] Inscribed Circle (mm):
9.525
[RE] Corner Radius:
0.008"
[RE] Corner Radius (mm):
0.21
[S] Thickness:
0.145"
[S] Thickness (mm):
3.68
